The Forensic
Certification Standard
Every GPU submitted to Assurd Techlabs passes through five mandatory phases of forensic inspection. No shortcuts. No consumer benchmarks taken at face value. No exceptions.
Physical & Electrical Triage
Before any power is applied, we treat every submitted unit as potentially dangerous. The GPU is inspected under 10× magnification for PCB damage, capacitor trauma, burnt traces, and connector deformation. We then conduct a 4-wire Kelvin resistance measurement on every power rail to detect shorts before the card ever touches a live bench.
Any short on the 12V or 3.3V rail, broken PCIe pads, or melted 12VHPWR connector triggers immediate quarantine. The unit cannot proceed.
Silicon DNA & Cryptographic Verification
We connect a hardware SPI flash reader directly to the GPU's VBIOS chip — bypassing the driver stack entirely. The extracted binary is SHA-256 hashed and cross-referenced against the Assurd VBIOS Hash Registry. We also validate the GPU's subsystem ID against the AIB manufacturer registry to catch counterfeit board substitutions.
> flashrom -p ch341a_spi -r vbios_dump.rom
> Reading flash... OK (512 KB in 4.2s)
> SHA-256: e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
> QUERYING ASSURD VBIOS REGISTRY...
> MATCH: ASUS ROG STRIX RTX 4090 OC [AD102 / 190-00591-0000-000]
> SUBSYSTEM ID: 1043:891E — VERIFIED AGAINST AIB REGISTRY
> STATUS: GENUINE SILICON — UNMODIFIED FIRMWARE
A VBIOS hash mismatch flagged as MISMATCH_MINING or MISMATCH_FRAUD is an immediate rejection. A modified VBIOS triggers a full electrical history investigation.
Thermal Forensics & 1800-Second Heat Soak
Consumer benchmarks run for 90–300 seconds. Our forensic thermal trace runs for 1800 seconds — 30 minutes of continuous full load. This is not arbitrary. A GPU heatsink has a thermal time constant (τ = Rθ × Cθ) in the range of 600–1200 seconds. Short tests measure the transient response, not the steady-state failure mode. We wait for thermal equilibrium, then we measure.
Grades are mathematically gated by steady-state Hotspot Deltas (ΔT). This ensures buyers know the exact state of the thermal interface compound.
Units with ΔT between 18°C and 30°C are issued a 'PASS — TIM DEGRADED' verdict. These units are capped at a BRONZE grade regardless of other performance metrics.
Gaming, Creative & AI Inference Validation

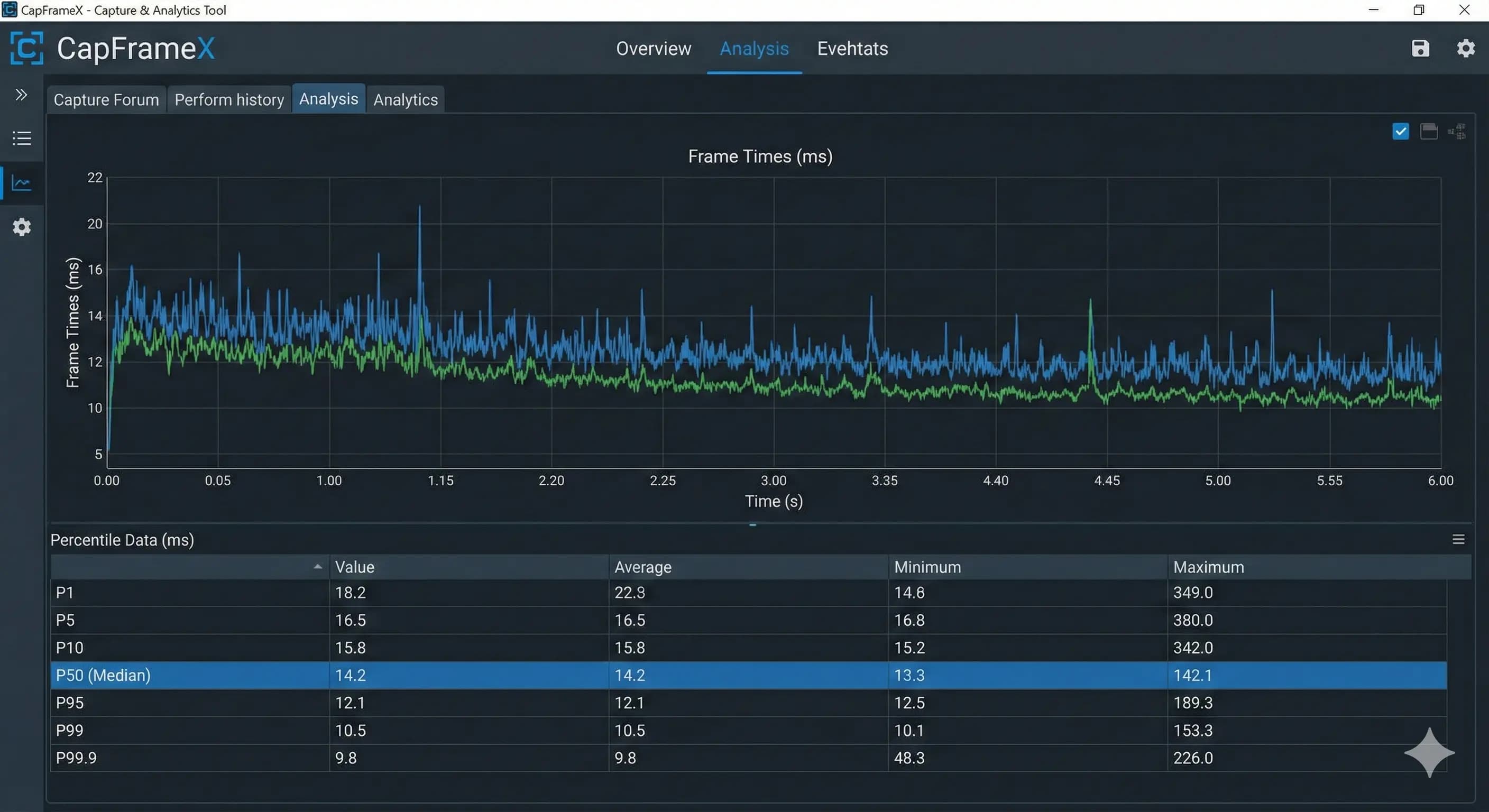

Raw benchmark scores are marketing. We capture frametime distributions — the statistical shape of how a GPU delivers frames over time. A GPU with a 142 average FPS and a 0.1% low of 41 FPS is a failing card, regardless of what 3DMark reports. Our Fluidity Score mathematically encodes VRM stability, VRAM health, and silicon integrity into a single auditable number.
Our scoring algorithm penalizes normal frame dips (70% weight) and severe micro-stutters (30% weight), calculated as:
A final score above 95 achieves Gold certification. However, if the 0.1% lows collapse by more than 60% below the 1% baseline, the software automatically voids the score and triggers a mandatory forensic hardware investigation for VRM degradation.
Certificate Finalization & Digital Twin Issuance
Every data point from Phases 1–4 is compiled by the Assurd Rules Engine — not a technician — into a Hardware Grade. The technician proposes. The Rules Engine decides. The resulting Digital Certificate is cryptographically signed and published to the Assurd public registry as an immutable Digital Twin of this specific hardware asset.
Elite performance. Requires Golden VBIOS, Pristine PCB, and Hotspot Δ < 12°C.
Excellent health. Hotspot Δ < 18°C. Authentic silicon DNA verified.
Good working condition with documented findings.
Functional but degraded. Includes units with 'TIM Degraded' thermal verdicts.
The certificate hash SHA256(report_id, asset_id, extracted_rom_sha256, generated_at) is permanently registered. Any tampering invalidates it.
